                       model

      project

 YG-100A2

 YG-100A1

 YG-100B

YG-100C

 YG-100D

 YG-100E

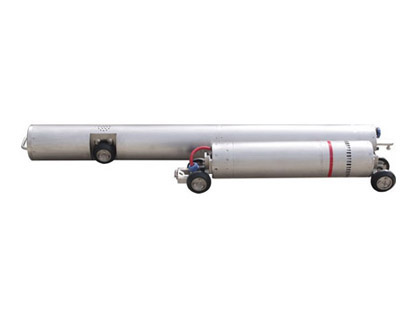

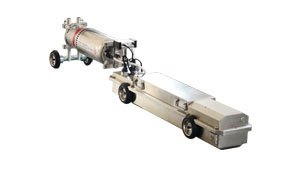

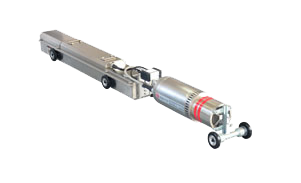

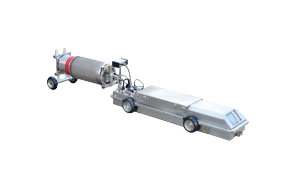

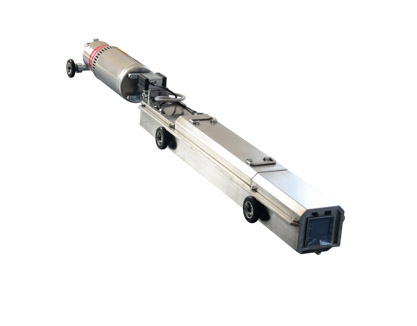

Equipment pictures

Ambient temperature ()

-40~80

Relative humidity ()

90%

Applicable range (mm)

 Φ810-Φ1422

  Φ710-Φ1219

  Φ410-Φ1016

  Φ273-Φ710

  Φ219-Φ510

  Φ159-Φ168

Body size (mm)

 1200x380x190

 1200x300x190

  1180x230x160

 1200x180x150

 Φ127x1200

Vehicle body weight (kg)

50.5

36.5

24

20

23

Machine head size (mm)

Φ300x672

Φ274x765

Φ240x700

Φ198x635

Φ178x570

Φ120x515

Machine head weight (kg)

 38

 34

 26

 16

 10.7

 10

Crawling speed (m/min)

 15~18

12~14

Maximum crawling distance (km)

5

Turning radius

70°

70°

7D

7D

10D

10D

X-ray tube

Ceramic circumferential cone target

Focus size(mm)

1.0x2.3

1.0x2.5

1.0x2.4

1.0x2.0

Radiation angle (°)

38x360

38x360

Max penetration thickness (mm)

  42A3

 42A3

 42A3

24A3

 12A3

Max output voltage (kv)

350

300

250

200

120

Tube current (mА)

3

positioning

Magnetic positioning

Positioning accuracy

(mm)

±5

±3

Positioner size (mm)

255x113x155

Positioner weight (kg)

2.8

Positioner penetration pipe wall thickness (mm)

32

15

Motor power (w)

500 w (continuous)

500 w (continuous)

250 w (continuous)

100 w (continuous)

Drive mode

Default is two-wheel drive, forced four-wheel drive.

Default four-wheel drive

Two wheel drive

Maximum climb (°)

27 ~ 45

27 ~ 35

20

Battery

Lithium battery

(120v/40Ah)

Lithium battery (120v/40Ah)

Lithium battery

(120v/30Ah)

Lithium battery

(120v/25Ah)

Lithium battery

(120v/15Ah)

Battery size (mm)

550x235x180

550x235x180

635x188x179

605x154x140

 613x133.5x135

φ127×1200

Battery weight (kg)

30.5

30.5

31.6

14.5

14.3

5.2

Delay before exposure

(S)

24

Exposure time range (S)

1-300S  (continuously adjustable)

Exposure time adjustment outside pipeline

Yes

Protective function

When it continuously receives signals (or continuously advances or turns on) for 30 minutes, encounters water, encounters obstacles, overtemperature of the machine head, low mA, low voltage, overvoltage, etc., the protection program will be triggered and protected. The crawler will return.

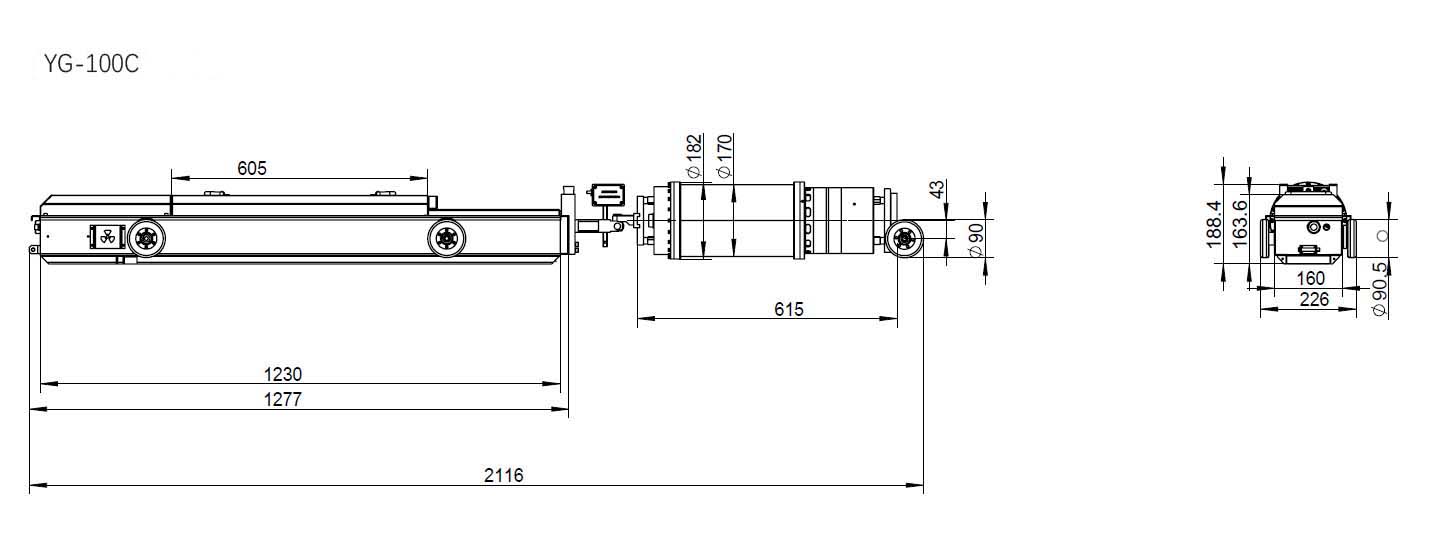

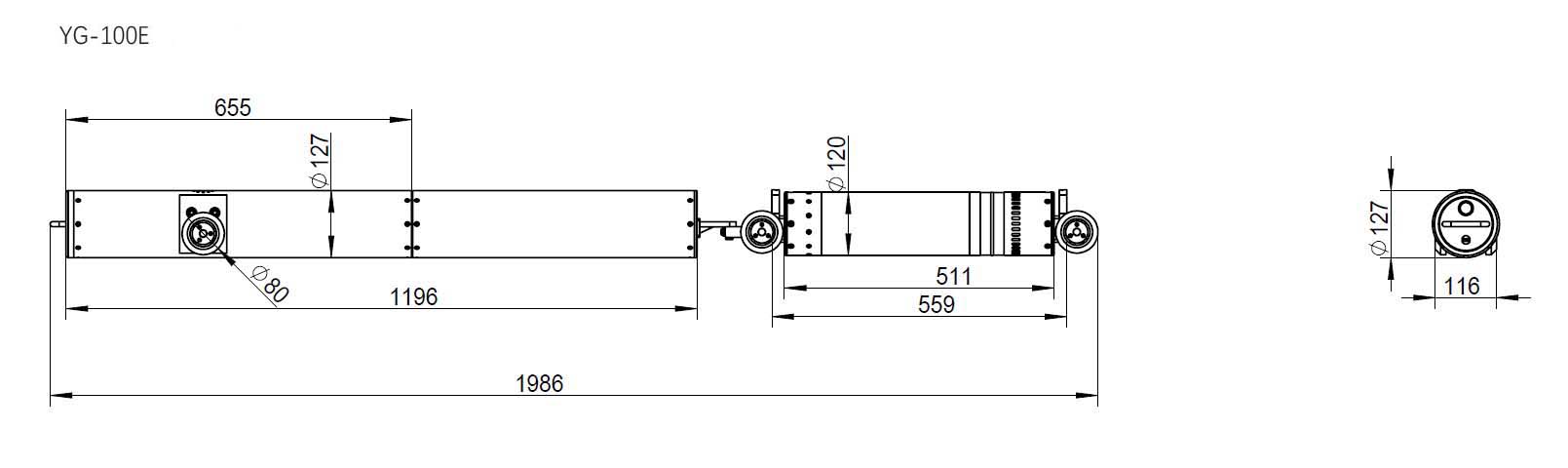

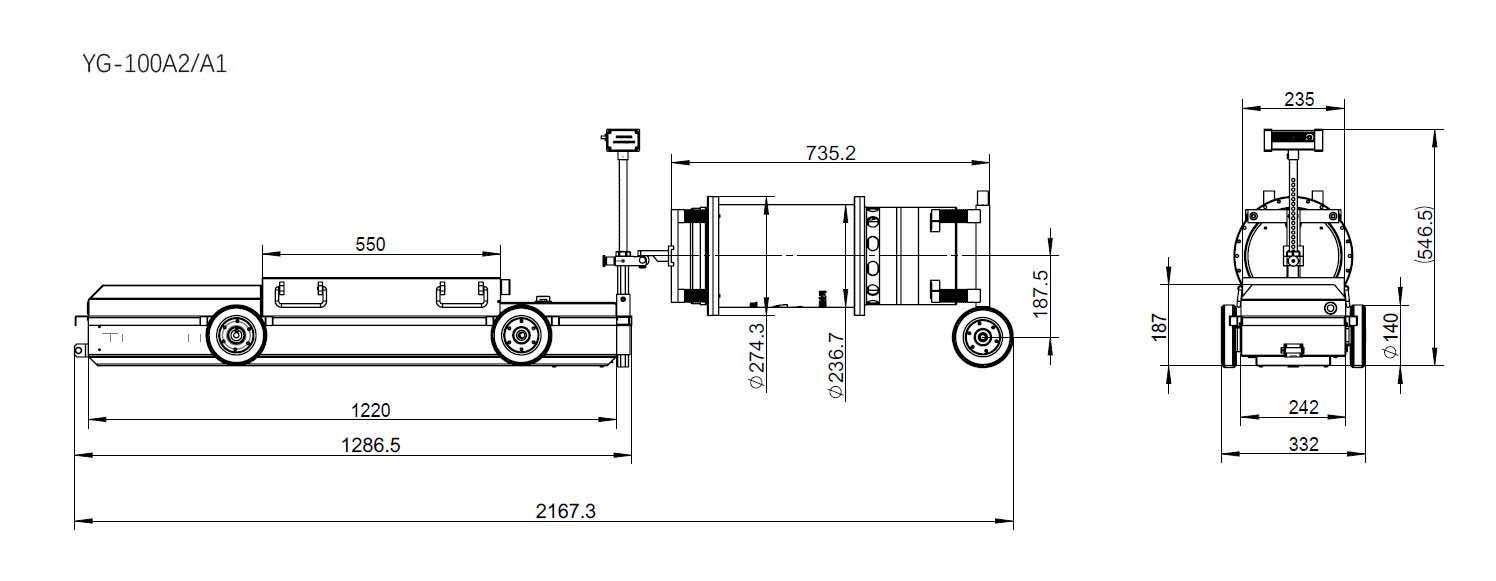

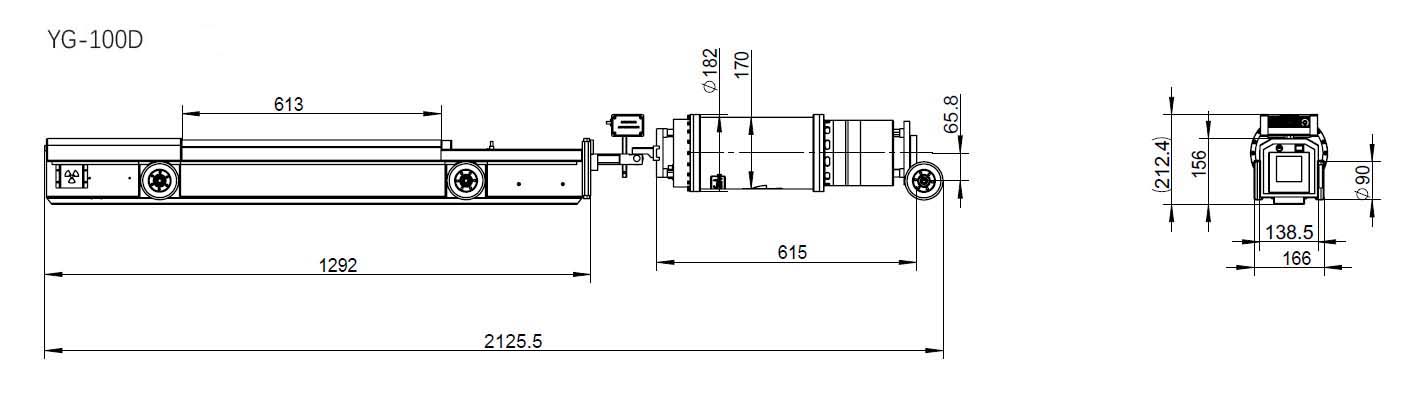

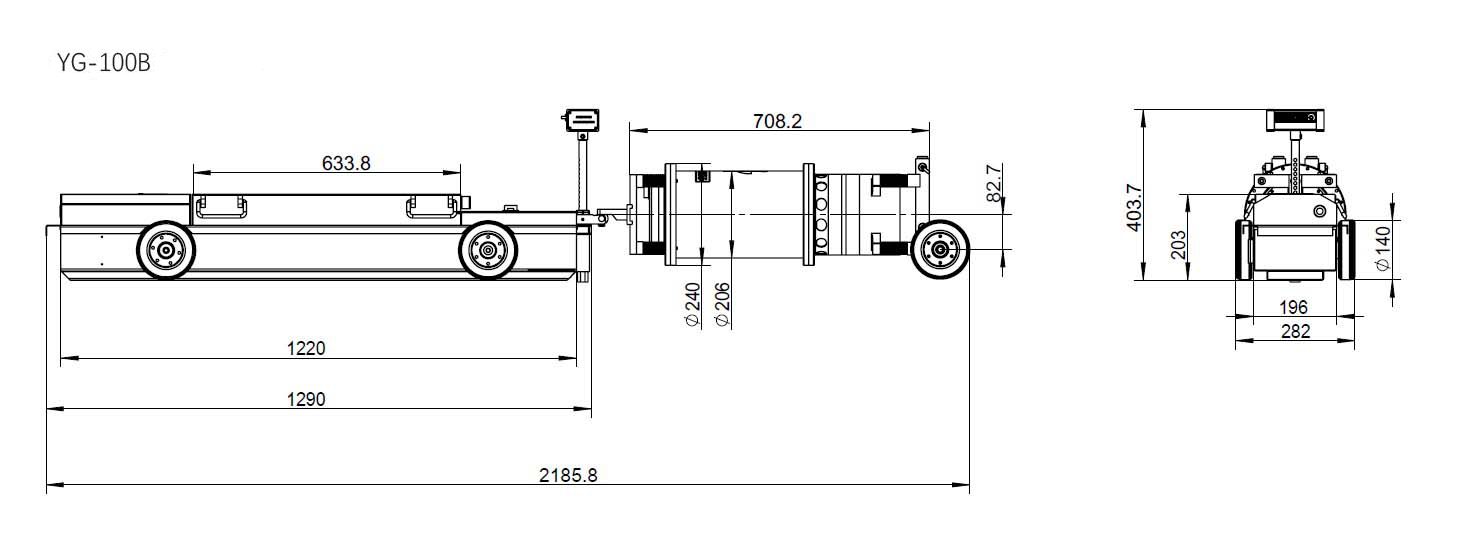

Crawler overall dimensions (mm)


X-Ray Pipe Crawler
