project name

Technical specifications

                                                     High frequency X-ray generator

Select the configuration model according to actual needs

                                                     Radiation angle (°)

40°×40°

                                                     Focus size (mm)

3.0mm

                                                     Controller size (mm)

Φ264×458mm

                                                     Controller weight (kg)

11kg

                                                     Maximum penetration (mm)

45mm F=700mmT=25minI=3.0mAU=200Kv

                                                     Kilovolt adjustment range (kv)

80 ~200kv

                                                     Milliampere adjustment range (mA)

0.5 ~3.0mA

                                                     Max output power (w)

900w

                                                     Protection temperature ()

85

                                                     Storage temperature ()

-25?C~ +70?C

                                                     Supply voltage (v)

AC196 ~ 260 V / 50~60 Hz

1.0 high frequency X-ray flaw detector
(It is recommended to use YG-D200G X high frequency X-ray flaw detector)
1.1
Main performance:
   n   Continuous operation at 200 kV/3 mA at 35.
   n   Wide input voltage range, suitable for various generator power supplies.

n   Light weight, strong penetrating power and stable performance.

n   More suitable for use in harsh conditions and humid environments.
   n   Intuitive control interface, easy to operate.

1.2
Main technical parameters
2.0 flat panel detector
The detector of this digital image detection system is a high-quality portable flat panel detector. The detector has a pixel resolution of 125μm and supports multiple timing modes. However, the detector can be powered by a battery. After the battery is fully charged, it can continuously shoot more than 1,000 videos and supports both wireless and wired control solutions. It can be installed on mechanical equipment and can be equipped with various protective covers for the convenience of on-site operators.

2.1 Main features

n Weld inspection, pipeline flaw detection, explosives and other hazardous materials inspection, other X-ray applications.

n Reliable amorphous silicon image sensor technology.
   n Pixel size 125 μm, grayscale 16 bits.

n  Drop-proof, IP54 dust-proof and moisture-proof, 180-second exposure window, 3-second full-resolution image acquisition time.
   n Built-in 1mm thick tungsten shield, can withstand 370kV radiation, 7mm narrow bezel, 2.5 hours battery life.

n Frontal load at least 100 kg.

n Supports continuous image acquisition at 1 frame/second.

n Support wired and wireless data transmission.
2.2 Technical specifications
   n Image sensor: amorphous silicon

n scintillator: GOS
   n pixel matrix: 2000*2400

n Picture area: 25cm*30cm

n AD conversion: 16 bits

n Image reading time: 3 seconds
   n Dynamic range: 72 dB. Energy range: 40–370 kV.

n Spatial resolution: 4LP/mm

n Appearance size: 340mm*292mm*18mm

n Weight: 2.3 kg (excluding internal protection and handle)

n Shell material: aluminum alloy, carbon fiber plate.

n Data/signal transmission

Wired: Ethernet 1 Gbps, >100 Mbps

          Wireless: 802.11 a/g/n, 2.4G or 5G, >100 Mbps.
   n Trigger method: software trigger
   n Software: Built-in special software for radiographic image processing.

n Temperature: -10~40 degrees (working)

         -20~55 degrees (storage and transportation)
   n Humidity: 20-90% RH (working, non-condensing).

Relative humidity 10-95% (storage and transportation, no condensation)
   n Vibration: IEC60074-2-6 (10-200Hz, 5g)
   n Shock: IEC60074-2-29 (16 ms, 10 g), radiation resistance 2000 Gy.

n Standard certification: CE, ROHS

3.0 Image processing software
Image contrast, brightness, gamma adjustment, the software provides a variety of image processing applications (such as image inversion, rotation, mirroring, etc.), image enhancement can be applied to identify defects more clearly, all images can be saved as 8-bit or 16-bit, Software engineering supports control.

4.0 Tablet Imaging Software
This tablet software is suitable for a variety of industrial digital inspection jobs. Image, including dynamic control, static control, image acquisition, processing non-destructive radioactive digital imaging, with the following functions: processing, image quality analysis, defect geometric size measurement, marking defects, image storage, automatic control, test report output software and detection software.

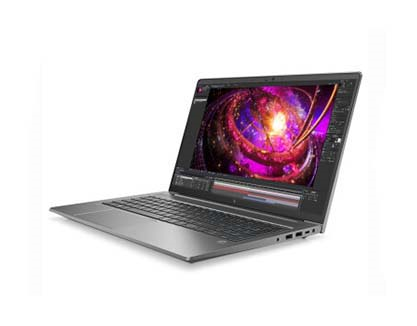

5.0 Laptop Workstation
Configuration requirements (depending on make and model at time of delivery):
    n  Genuine Windows operating system (win7, win10, win11)
    n I7 processor, base frequency above 2.2GHz.
    n Memory at least 8 GB.
    n Discrete graphics card.
    n Wireless Network – Wireless AC 9560, 802.11ac, dual-band MU-MIMO.
    n Smart card reader, HDMI interface, USB3.0 interface.
    n Minimum 500 GB hard drive.

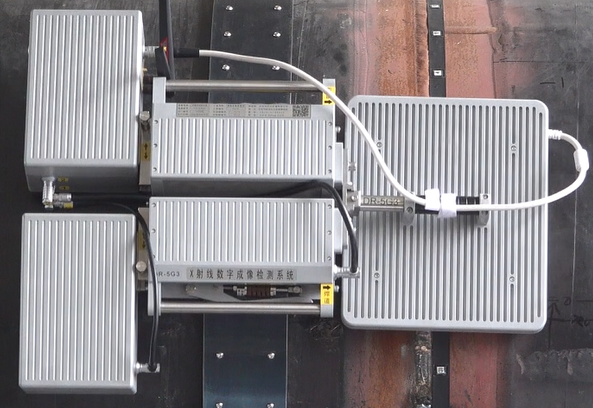

1.0  Basic information

         n   Equipment name: X-ray digital image detection system V1.0

   n  Specification model: YG-DR01

   n  Image transmission method: wireless transmission

   n  Applicable pipe diameter: φ510~φ1219mm (optional rails according to user needs)



2.0  Hardware configuration list

serial number

Equipment and accessories

Specifications/Models

manufacturer

quantity

Remark

1

Device 1

  (carry image acquisition board)

YG-PC10

DDYG

1 set

equipment

2

Device 2

  (carry X-ray generator)

YG-PC11

DDYG

1 set

equipment

3

Flat panel detector

CareVision

Careray

1 set

Accessories

4

Image processing software

Ver 20.21.10.16

DDYG

1 set

Attachment (DR system)

5

Image workstation

HP 99

HP

1 set

Attachment (DR system)

6

High frequency X-ray flaw detector

YG-D300G

DDYG

1 set

equipment

7

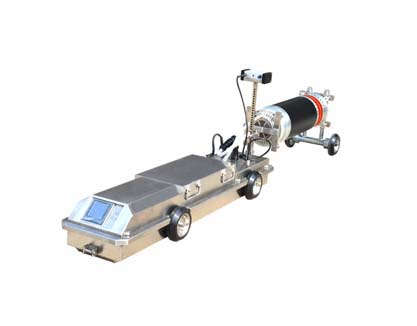

High frequency X-ray pipe crawler

YG-G100A1

DDYG

1 set

equipment

8

Auxiliary rail

  (One specification is optional)

φ510~φ1219mm

DDYG

1 set

Attachment (DR system)

Details: downloadPDF

Device name

Portable digital image inspection system

Equipment photos

   +        +


Basic configuration

Device name

Digital pipeline visualization system

Equipment photos

                                  +        +

Basic configuration
